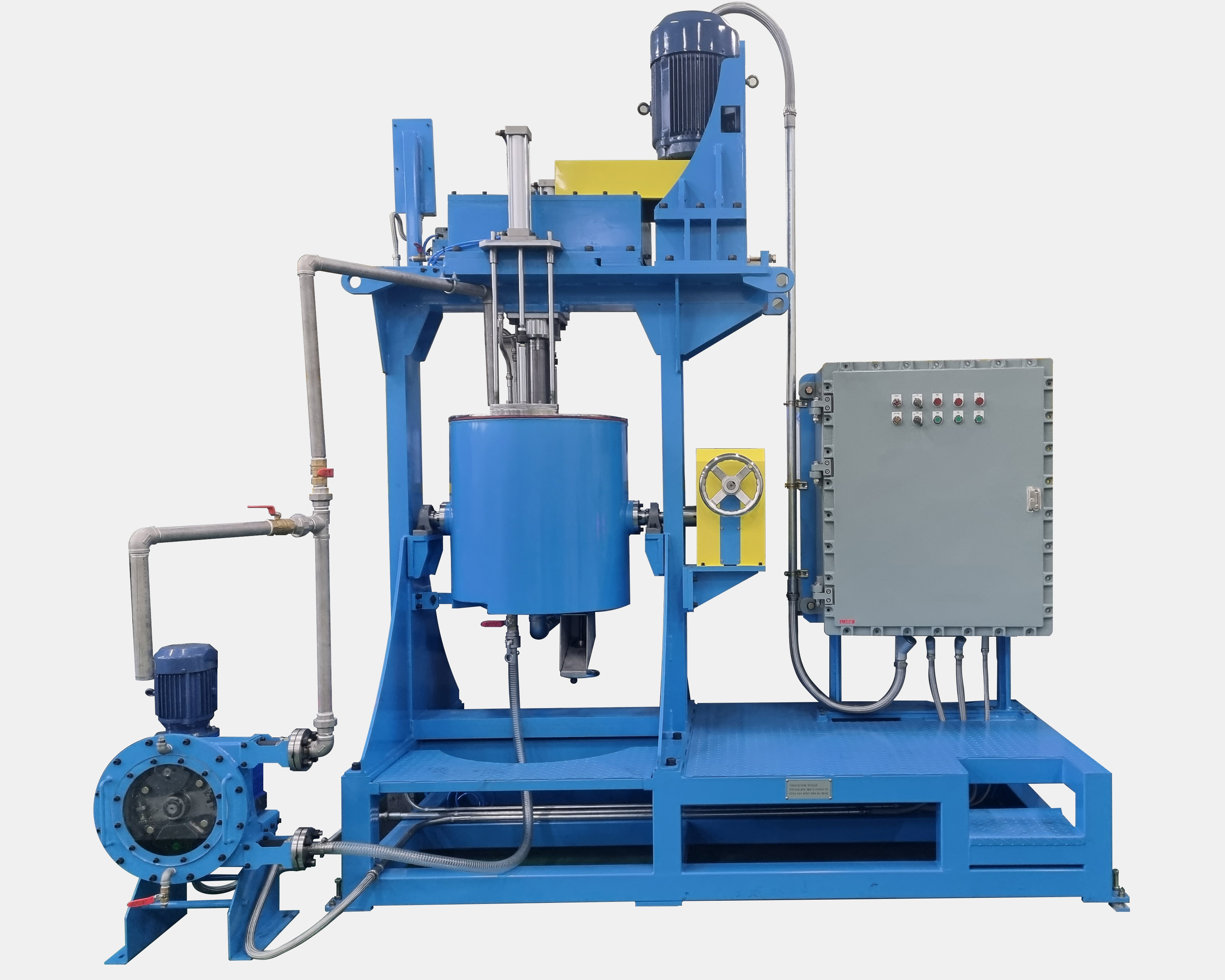

200KG ATR (Attrition Mill)
•A machine precisely grinds and uniformly mixes various materials such as tungsten carbide,
ceramic, etc.
•Efficient mixing is available based on the set rotation speed and ball size, ensuring consistent
product quality.
•Offers faster production speed compared to conventional ball mills, significantly reducing
processing time.
•Materials are smoothly transferred via hose pump, enabling more efficient mixing.
| Installation Footprint | 2200mm(W) x 1900mm(D) x 3530mm (H) |
| Container Capacity | 200L (300L) |
| Mixing Capacity | Up to 200KG |
| Main Power Supply | 25KW |
| Control Box | Explosion-proof enclosure |
| Control System | PLC-based automatic control system |
