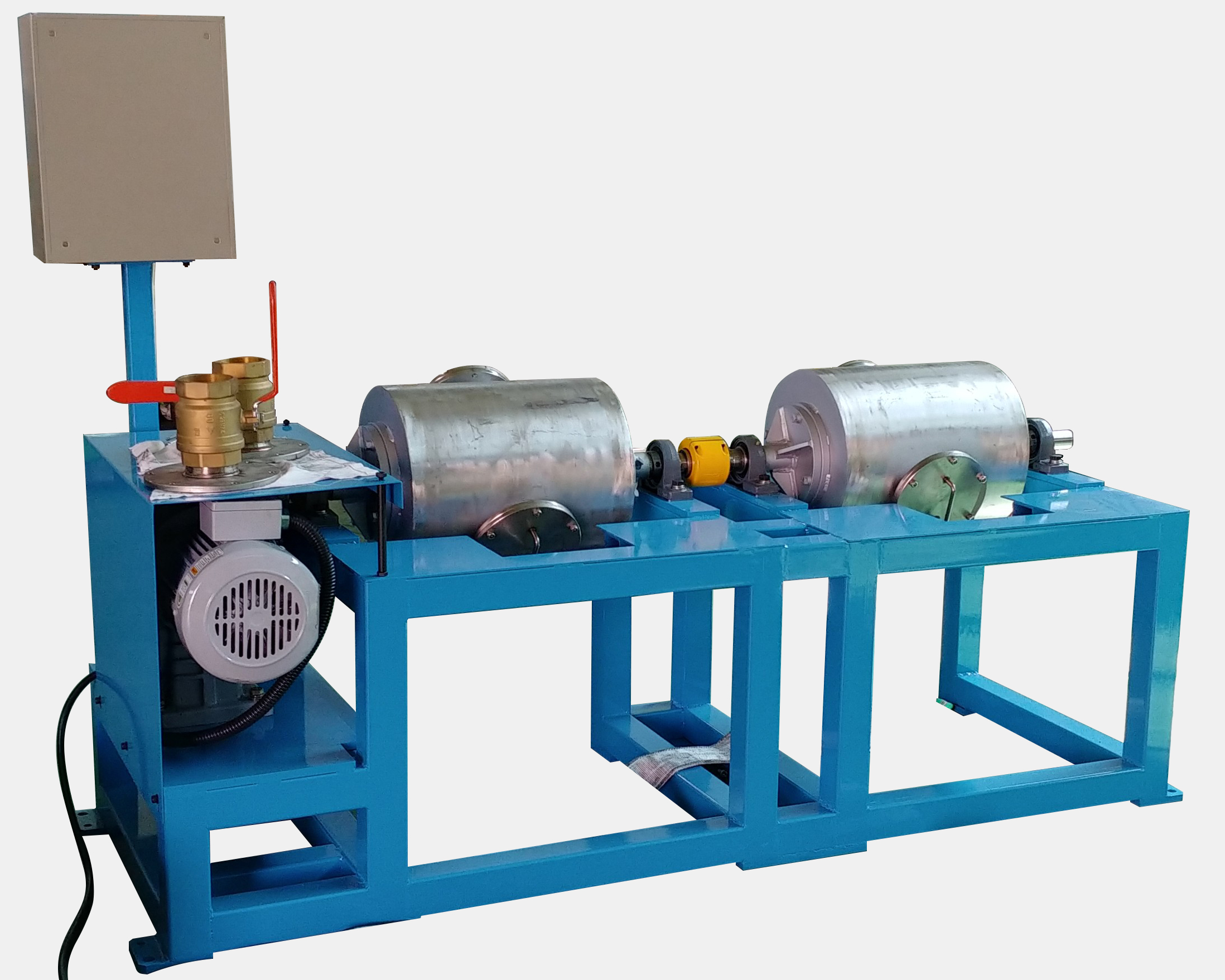

Ball Mill
•A machine that produces fine powders used in various industries such as tungsten carbide,
ceramic, etc.
•Operates by grinding and mixing materials inside a cylindrical drum filled with balls.
•Grinding efficiency and particle size can be controlled by adjusting the rotation speed and
ball size.
•Ball mill sizes can be customized to meet specific customer requirements.
| Installation Footprint | 2630mm (W) x 1050mm (D) x 1130mm (H) |
| Operating Volume | 150L+105L=210L |
| Mixing Capacity | Up to 100KG+100KG=200KG |
| Main Power Supply | 3.75KW |
| Control Box | Explosion-proof, standard enclosure |
| Control System | PLC-based automatic control system |
