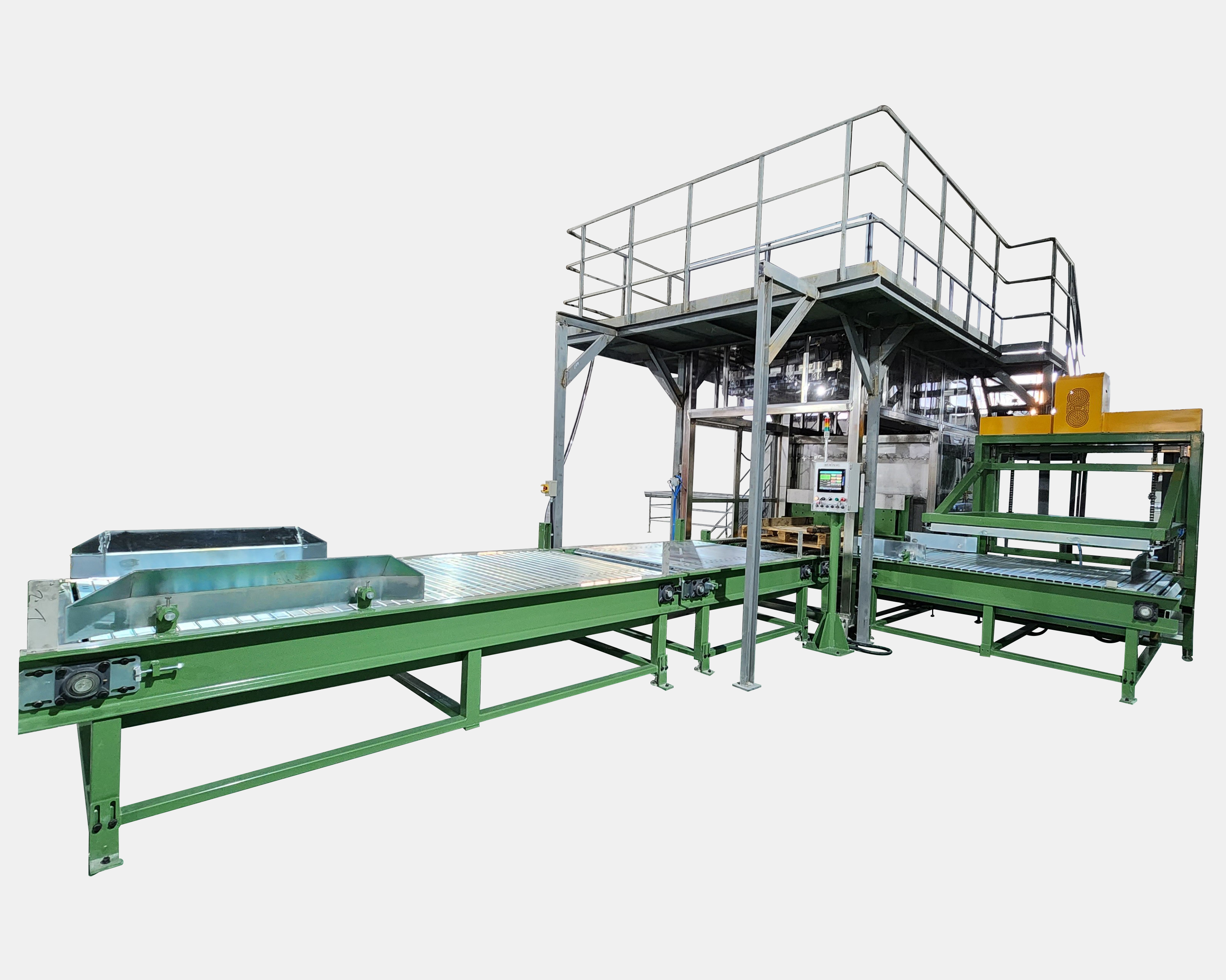

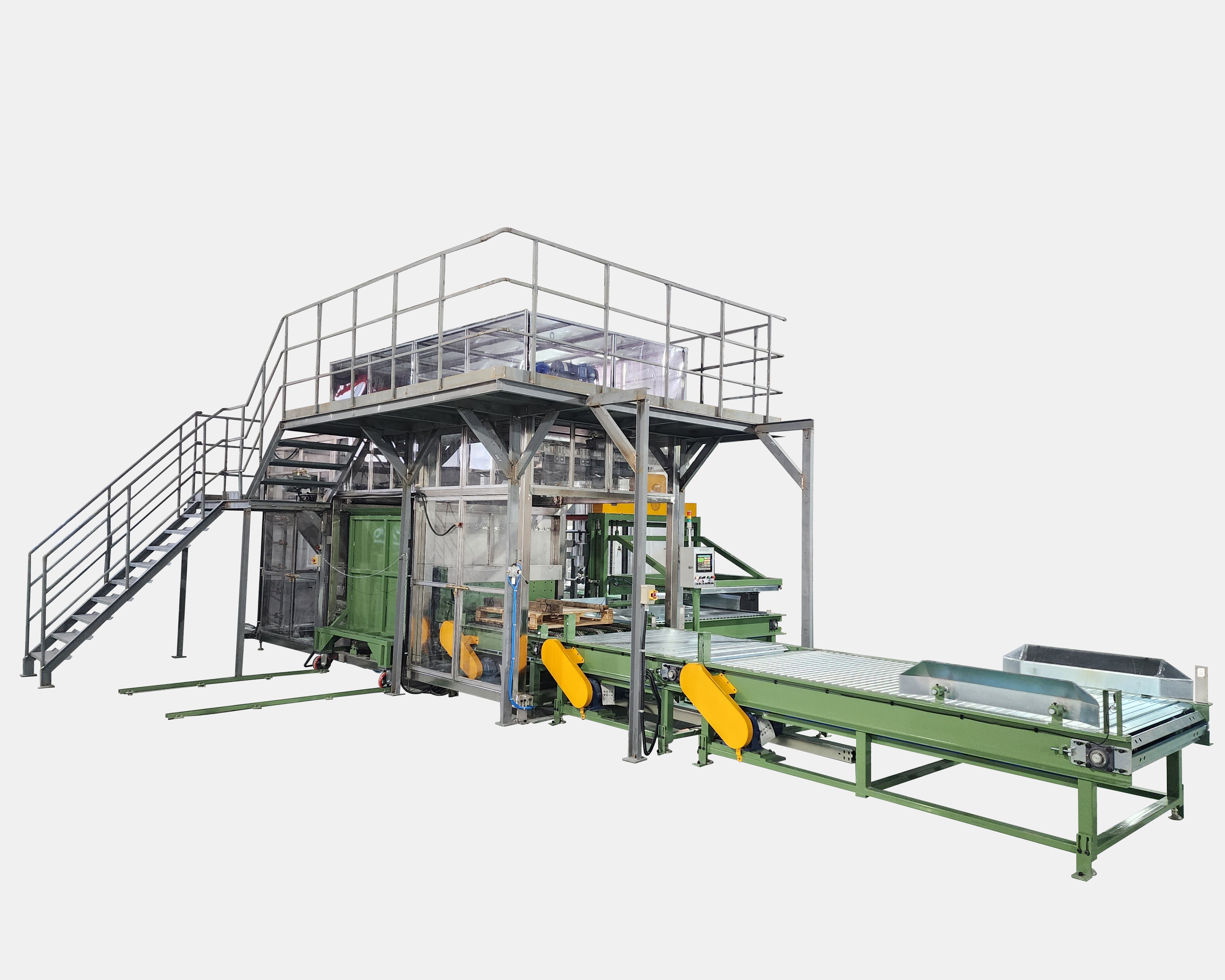

Automatic Raw Material Feeder
•A machine that supplies raw materials from palletized bags into a tank after being placed on a
pallet.
•Suitable for bulk material handling in industries such as chemicals, grains, etc.
•Loaded by cutting open 5 bags at a time, and the empty bags can be separated.
•Can accommodate 5 pallets for waiting.
| Installation Footprint | 10300mm (W) x 4400mm (D) x 4700mm (H) |
| Lift Weight | 220KG (for 5 bags) |
| Feeding Capacity | 15 tons per hour |
|
Total Power |
30KW |
| Control Box | Waterproof enclosure |
| Control System | PLC-based automatic control system |
