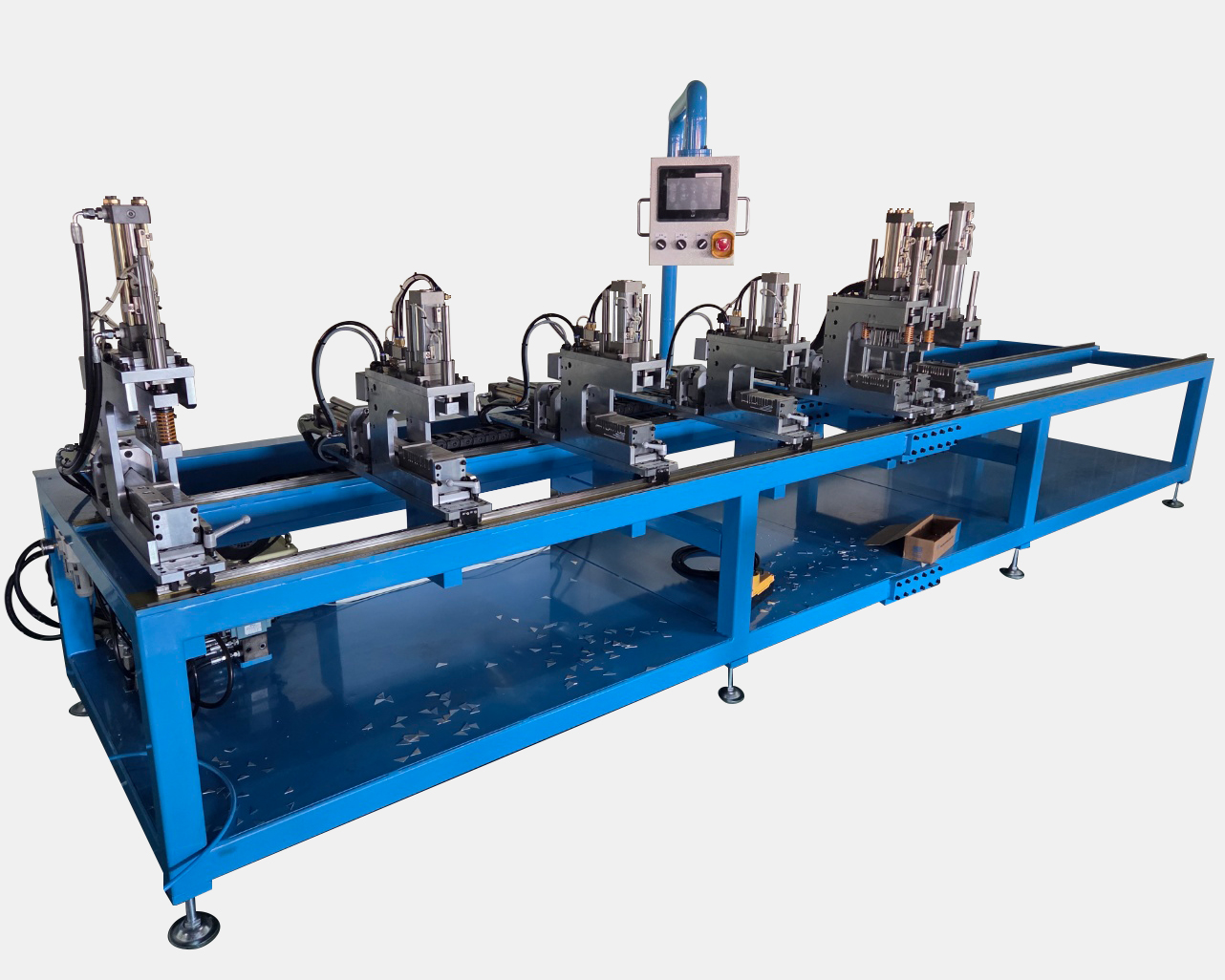

V-Cutting Machine
•Equipment for V-cutting filter cases.
•Ideal for small-batch, multi-product production.
•Automatically performs rivet hole punching and bending after material loading.
•Simple size setting allows for reduced setup time.
| Installation Footprint |
5000mm (W) × 990mm (D) × 860mm (H) |
| Maximum Output | 3EA per minute |
| Production Output | 2EA per minute (including loading and unloading time) |
| Total Power | 3.75KW |
| Control Box | Standard enclosure |
| Control System | PLC-based automatic control system |
